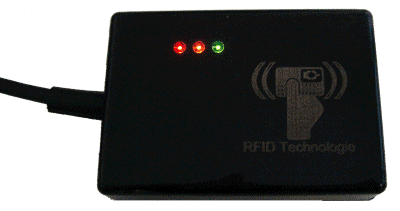

Description:
This stationary reader can read transponders which work with 13.56MHz and apply to the standards ISO15693, ISO18000-3, Tag-it™.
The reader has an integrated antenna and reaches a reading distance up to 11 cm.
The anti-collision algorithm of the reader allows to catch several tags at the same time. The identification works through plastics, glas and even water.
Variants of the AE1356i
- AE1356i desktop:
3 LEDs, Buzzer, RS232 with DSub 9pol., 72 x 50 x 18 mm
- AE1356i desktop:
3 LEDs, Buzzer, RS232 with USB, 72 x 50 x 18 mm
- AE1356i desktop:
3 LEDs, Buzzer, RS232 with RJ45 plug, 72 x 50 x 18 mm
- AE1356i sealed:
3 LEDs, Buzzer, RS232 with RJ45 plug (automotive), 72 x 50 x 13 mm
- AE1356i OEM module:
3 SMD LEDs, RS232 with DSub 9pol., 67 x 45 x 5,5mm
Application area:
- identification of persons
- access control for persons and mobile systems (e.g. car sharing)
- information system or data collector for events
- production control system
- Warehouse controlling
